Wiped Film Evaporator

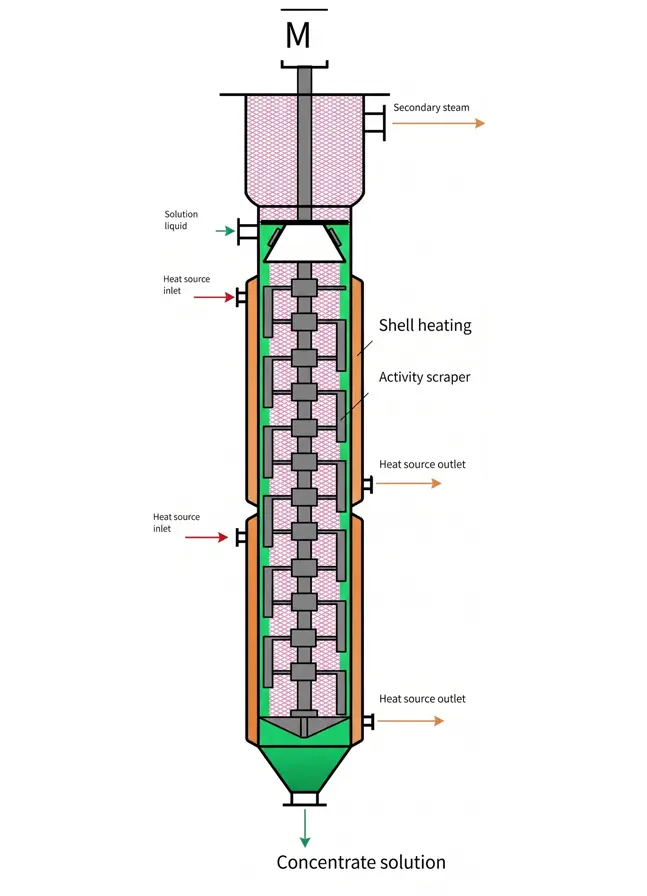

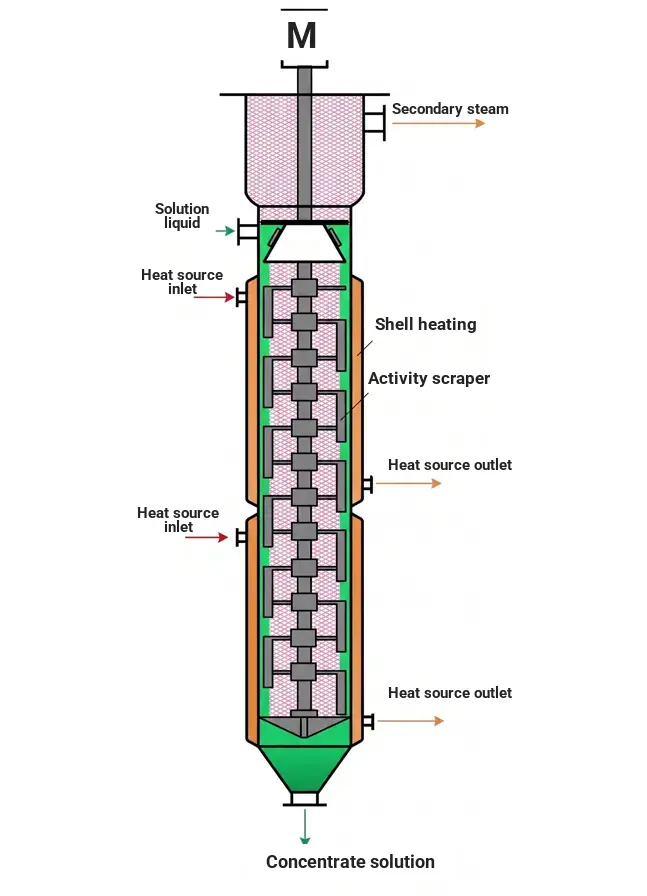

Structure:

1. Feed tank    2. Feed preheater    3. Wiped Film Evaporator    4. Gaseous phase substance    5. Condenser    6. Heavy phase substance    7. Light phase substance



Features:

1. Wide adaptability: materials with high viscosity, heat sensitivity, easy to crystallize and scale;

2. High efficiency, large capacity, large evaporation per unit area, evaporation of water and organic solvents and other solutions 80~300Kg/h·m²;

3. The residence time of the material on the evaporation surface is short, about 10 seconds, and it is not easy to coke and scale;

4. It can achieve low-temperature evaporation under high vacuum conditions and save heat source;

5. It can be suitable for automatic continuous production, with large operation flexibility, simple structure, easy maintenance, and automatic control;

6. Change the shape of the scraper (the groove inclination angle on the outside of the scraper) to adjust the time of the material staying in the evaporator to meet the needs of evaporation of materials of different viscosities.



Main configurations:

1. Container housings with jacketed or half-tube heating;

2. The rotor can be configured with different scraper forms: movable scraper, fixed scraper, hinged scraper, etc.;

3. The distributor can be evenly distributed with materials;

4. The gas-liquid separator can be entrained by means of mist;

5. Bottom seal head with external or built-in bearing support rotor.

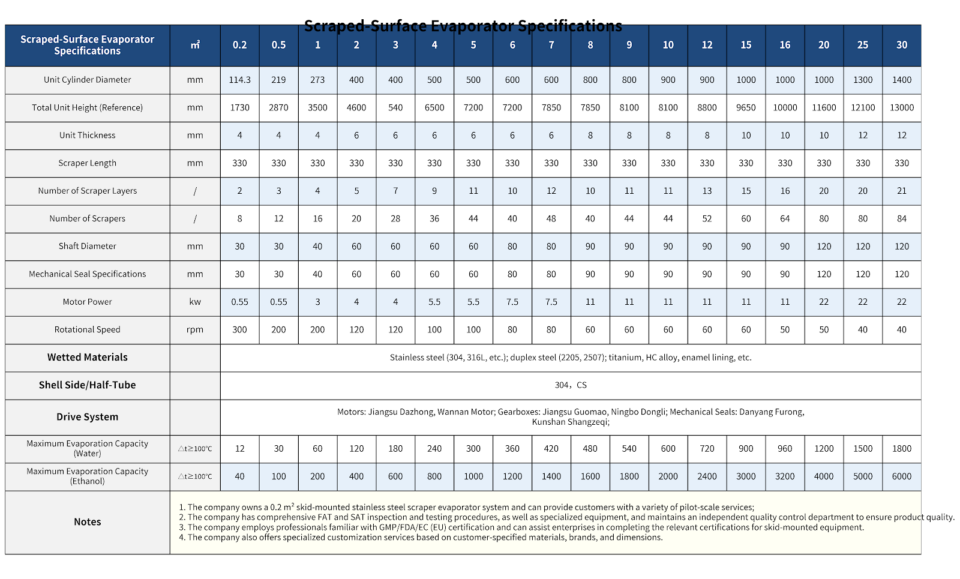

Design Parameter	Range / Specification
Available Evaporator Size	0.04–103 m²
Throughput	0.1 kg/h–several tonnes/h
Application Scale	Laboratory, pilot-scale, and industrial plants
Maximum Vacuum	0.1–1 mbar
Maximum Operating Temperature	Up to 350°C (up to 400°C with special design)
Applicable Viscosity	Up to 75,000 mPa (as stated in the reference image)
Fouling Products	Suitable for fouling products
Fine Separation	Fractionation columns can be added for fine separation
Applicable Materials	Glass; stainless steel (304, 316, 316Ti); special alloys; enamel lining
Design and Certification	Explosion-proof design / GMP design / pressure vessel certification



1. The company owns a 0.2 m² skid-mounted stainless steel scraper evaporator system and can provide customers with a variety of pilot-scale services;

2. The company has comprehensive FAT and SAT inspection and testing procedures, as well as specialized equipment, and maintains an independent quality control department to ensure product quality.

3. The company employs professionals familiar with GMP/FDA/EC (EU) certification and can assist enterprises in completing the relevant certifications for skid-mounted equipment.

4. The company also offers specialized customization services based on customer-specified materials, brands, and dimension

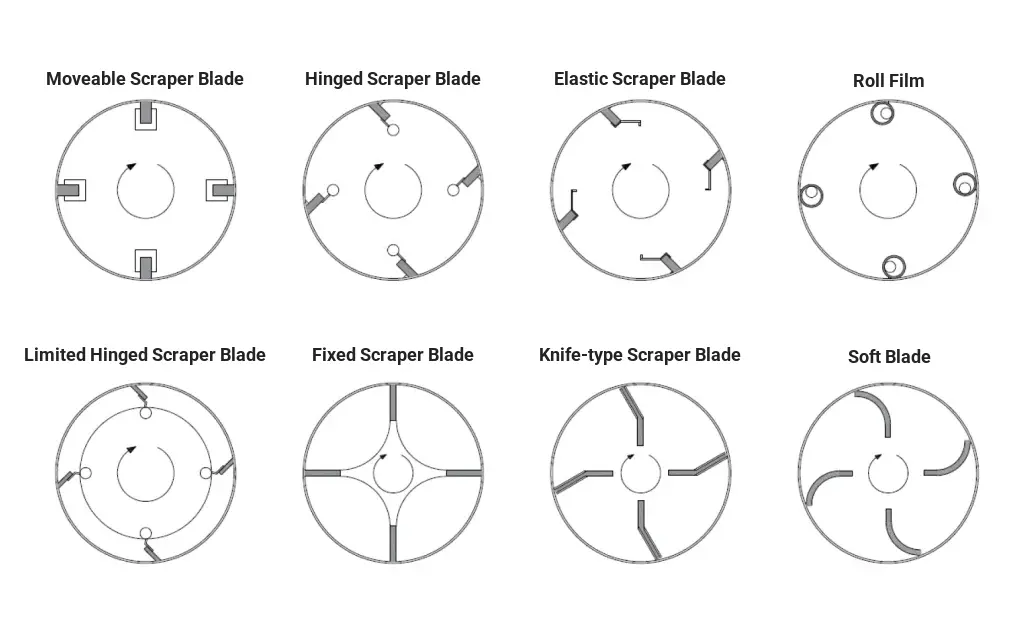

Rotor features:

1. Different rotors are available for different substances;

2. Through the selection of different rotor forms, the residence time of the material and the thickness of the lamination can be controlled to optimize the evaporation efficiency;

3. According to the selection of the rotor and the perfect match with the comprehensive performance of evaporation, in order to achieve the perfect combination of cost and efficiency;

4. According to the choice of rotor, the heat source can be saved under the condition of improving the evaporation efficiency;

5. Easy maintenance.
